Bass Notes

Singing trees, not singing fish

While I was continuing to get skunked at Moss Island, at least on the double knocker front, "Jacob" had been circulating my 3/18 double knock recording a bit amongst other interested people. I did not expect much response, as the big projects seemed to have dismissed Tennessee a year or more before. However, in June one of the Cornell PIs did have comments, and there was a bit of an e-mail conference between him and us. His initial response was two fold: very impressive double knocks, and because of the 10 second spacing almost surely just the simulations. There was some miscommunication between Cornell and Tennessee about the particulars of the simulations and timings, but even after this was sorted out the Cornellian remained convinced that mistiming, miscounting, and anomalous sound propagation were more likely than an actual response to the double knocker. He commented that, "a response pattern of just three double knocks spaced 10 s apart is unlikely for Campephilus." My observation in February of what was essentially this exact thing (three double knocks in rapid series) in response to a gunshot appeared to be given no significance. Worthy of note, we were not operating from a presumption of Ivorybillness and did not dismiss data because it did not match a priori notions of how an Ivorybill should behave. If we have Campephilus-like (actually, Campephilus-identical) double knocks at Moss Island, that fact is of great significance to the Ivorybill quest regardless of whether or not they truly are from an actual Campephilus. I'll have more to say on that in my concluding posts in this series. In the end he concluded that the sounds I recorded were "quite obviously something else than an Ivory-billed Woodpecker." My closing response to this was, "'Obvious' is a judgement. There are many rational, well-educated people who consider it obvious that the human mind was intelligently designed, that the bird in the Luneau video is a normal Pileated Woodpecker, and that double knocks are caused by duck wingtip collisions."

Beyond these immediate discussions, though, we also talked about what sorts of responses to the double knock simulator might be expected based on what has been seen in other Campephilus species. Much remains unanswered, but doesn't it seem likely that there would be wide variability between species, times of year, and local circumstances? Imagine if you tried to predict the behavior of a Lincoln's Sparrow on the wintering grounds based on the behavior of the congeneric Song Sparrow on the nesting grounds. You would get some broad generalities right, but would be wildly in error on many important particulars.

There is one well-publicized example of the behavior of a pair of Campephilus woodpeckers in response to simulated double knocks: David Attenborough's Magellanic Woodpeckers. Bear in mind, though, that this is a nature documentary, not a piece of raw scientific data. What we see in the final video is very likely a greatly edited abstraction from a large amount of footage. Who knows how many attempts were needed before this worked, if Attenborough's little tapping on the tree with two small rocks is the only attractant they actually used, whether they might have been standing 10 meters away from the birds' nest tree, if every shot is even of the same pair of woodpeckers, etc.? This is primarily entertainment, not scientific documentation. Still, though, it is the best footage of double-knocking Campephilus that I have seen anywhere.

I have wondered ever since I first shot the 3/18 video if there is a way to determine whether the double knocks I recorded are real or simulated based purely on the properties of the sounds themselves, without involving matters of timing, location, etc. To the ear the simulator can be a good approximation to the real sound, but it is not identical. Spectrographically there are some notable and consistent differences, which I alluded to in the previous post. I already posted one sonogram of the sound of the simulator at close range; here are two more along with video clips so you can hear also. As always, click the sonogram to see a larger version:

April 9:

video
August 21:

video

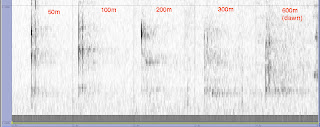

And here are samples of double knocks from the same simulator recorded from increasing distances, from August 21-22:

video
Note that to improve legibility, I boosted the gain by 100% on the middle three and by 200% on the last one, hence there is a lot more drop in loudness than it appears. The final sample, from 600m, was recorded at dawn; the others were at midday. It shows very well the greatly improved sound propagation in the dawn stillness; remember though that it is still less than 1/3rd of the distance that I was from Scott on the morning of 3/18. Looking at the whole sequence, you see the loss of the high frequencies, the blurring out of the sharpness, especially in the second knock and at midday, and the persistence of the long trailing gunshot-like echo at lower frequencies, regardless of time of day.

For comparison, here are two examples of real double knocks. First, a Powerful Woodpecker from the Macaulay Library of the Cornell Laboratory of Ornithology, catalog number 84098:

video
Next, here are sample double knocks from David Attenborough's Magellanic Woodpeckers (I hope the BBC, who seem to be checking my blog regularly, do not object to this use of a tiny sample of their footage. It would seem like fair use to me):

video
The most obvious differences are twofold:

A. The simulations have more high-frequency sound than the real double knocks.

B. The simulations show a more pronounced trailing echo than the real thing, looking almost like little gunshots with their broad rightward smear.

The real sounds are variable in their frequency distributions, especially on the low range. The examples that show the strongest base notes are the ones by the male Magellanic when he appears to be rapping close to a cavity, presumably near a void in the tree truck. This deep base is what gives some of the knocks their hollow, resonant quality.

Look more closely at the basso profundo on the Magellanic double knocks. Notice how the vertical line marking each knock bends to the right towards the bottom. There is a delay of a few milliseconds in these base tones as compared to the higher frequencies. In the Magellanic knock with the strongest base, it looks like this delay is actually greatest not in the deepest tones, but a bit above them; it's a bowing out, not a simple rightward bend. On the Powerful sonogram, the basso profundo is much less forte. But in the clearly visible faint tails at the bottom of the knocks, we see a distinct rightward bend as well.

I should say here that I am a hack when it comes to bioacoustics. Sure I have a Ph.D., but it is in Ecology, not Physics, Acoustics, or even Music. My formal training in acoustics would have been nothing beyond college physics about 28 years ago. So I am no expert here. But I'm not a total dope, either. It seems to me that this rightward bowing on the base of the sonogram, indicating a delay in the production of the tones in the frequency range of a few hundred Hz, is likely a property of the resonance of tree trunks. I expect it is this brief delay that especially gives the real knocks their sonorous, resonant quality.

Now, look back at the simulations. They do not show this feature. The initiation of the sound is at the same instant at all frequencies, making a crisp straight vertical line on the sonogram. Whatever the resonance properties of a real tree are that produce this effect, the simulator appears to lack them. Again, I'd hypothesize that the lack of this feature is what makes the simulations sound subjectively less resonant to the ear. There is no lack of the basso profundo tones in the simulated double knocks; they just happen at the exact same instant as the higher tones and thus to the ear are absorbed within the one big sharp "whack." I would propose to add a third distinguishing feature that can potentially differentiate simulations from the real thing:

C. The simulations lack the rightward bend of the sonogram at low frequencies; all frequencies of sound are produced at the same time.

As far as utility in the field, it varies between each feature. Item A, the excess of high frequencies, will fade out rapidly in a forest so it is probably of no real value. Item B, the trailing echos, certainly might be useful. In the data I posted both here and in the previous post showing the simulations at different distances, this only becomes more prominent with attenuation, as the whole sonogram dissolves into mush. Unfortunately I do not have any recordings of known real double knocks at great distance for comparison. Item C, the rightward bending base of the sonogram, might well survive over distance. As the speed of sound in air is largely independent of frequency, this feature (straight versus bent) should be preserved for as long as the sound remains crisp enough to give a good spectrographic image. It's also worth noting that this feature might be useful for separating "real" double knocks from other sounds, such as duck wingtip collisions, construction or vehicle noises, etc.

Finally, to the Tennessee sounds from March 18th one more time. Here is the clearest one, number 3 (click to enlarge):

As would be expected in either case, the high frequencies are gone. In the base tones that remain, I see rightward bowing. In fact it looks almost exactly like the shape of the Magellanic double knock at the same frequency range. There is also not a trace of the trailing echo, or any other smearing. So for the two criteria that might be meaningful in the field at a distance, this one scores as "real" on both.

Here are the other two 3/18 double knocks, along with the audio/video again:


video
The first knock of #1 is fairly clear; it looks bent to me. The final note of this double knock, plus both notes of double knock #2 are very faint. Still, the faint lines do seem to show a bend.

Score for this round:

Simulations: 0
Real thing: 2

Once again, this still only indicates that the sound is not the simulator and is something else rapping on wood making a sound very much like a Campephilus double knock. As always, this does not in itself prove the presence of a real Campephilus woodpecker at the site. But it again supports the idea that the Moss Island Mystery Double Knocker is a real and coherent phenomenon, not just a random assortment of ordinary sounds being misinterpreted.

Other posts in this series:
First
Previous
Next
